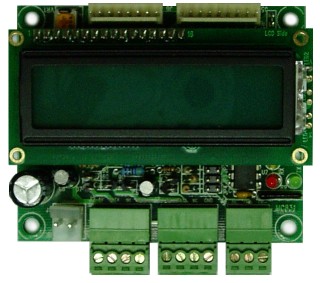

MC831 TEMPERATURE COLLECTION BOARD


Features
RS485 interface.
Upto support 16 DS18B20
7 Output drivers.(Can be used to drive relays, LEDs)
Keypad support (4x4 keys)
LCD(16x2 chars)
8K EEPROM
Support i-Control System
Support Easy Control
Download

Datasheet


Model Input Output Communication RealClock Keypad EEPROM LCD
Dry Contact
(With line-fault detect)
Dry Contact Temperature Analog Drivers
Relays Opto-isolated Null-isolated
MC831-1L
1   7


1(RS485)

4x4 8K 16x2 chars
MC831-4L
4   7


1(RS485)

4x4 8K 16x2 chars
MC831-8L
8   7


1(RS485)

4x4 8K 16x2 chars
MC831-16L
16   7


1(RS485)


4x4

8K 16x2 chars
MC831-1
1   7


1(RS485)

  8K
MC831-4
4   7


1(RS485)

  8K
MC831-8
8   7


1(RS485)

  8K
MC831-16
16   7


1(RS485)

  8K
