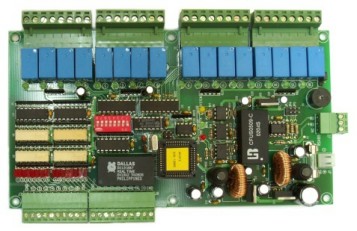

MC672 INPUT/OUTPUT BOARD


Features
On board opto-isolated RS485 interface.
16 dry contact inputs, each with a LED for status indication. (common ground)
All inputs have owner state changed timeout setting for improved input noise rejection.
16 on-board relay outputs, each with a LED for status indication.
MC672A with real-time clock installed.
Support i-Control System
Support Easy Control
Provide ActiveX Control (MCIOCTRL) for your application software.
Download

Datasheet


Model Input Output Communication RealClock Keypad EEPROM LCD
Dry Contact
(With line-fault detect)
Dry Contact Temperature Analog Drivers Relays
Buzzer
Opto-isolated Null-isolated
MC672   16         1 1(RS485)
MC672C   16         1 1(RS485)   1
